Removing the Shroud - Muse Hobby Lasers

General CO2 Laser Troubleshooting Updated May 09, 2024
Back to Topic Submit a Ticket

Tools Needed:
2.5mm Hex Key

  1. Clear inner workspace, remove Honeycomb Tray(s), and move unlocked laser head gantry to the front of the machine.

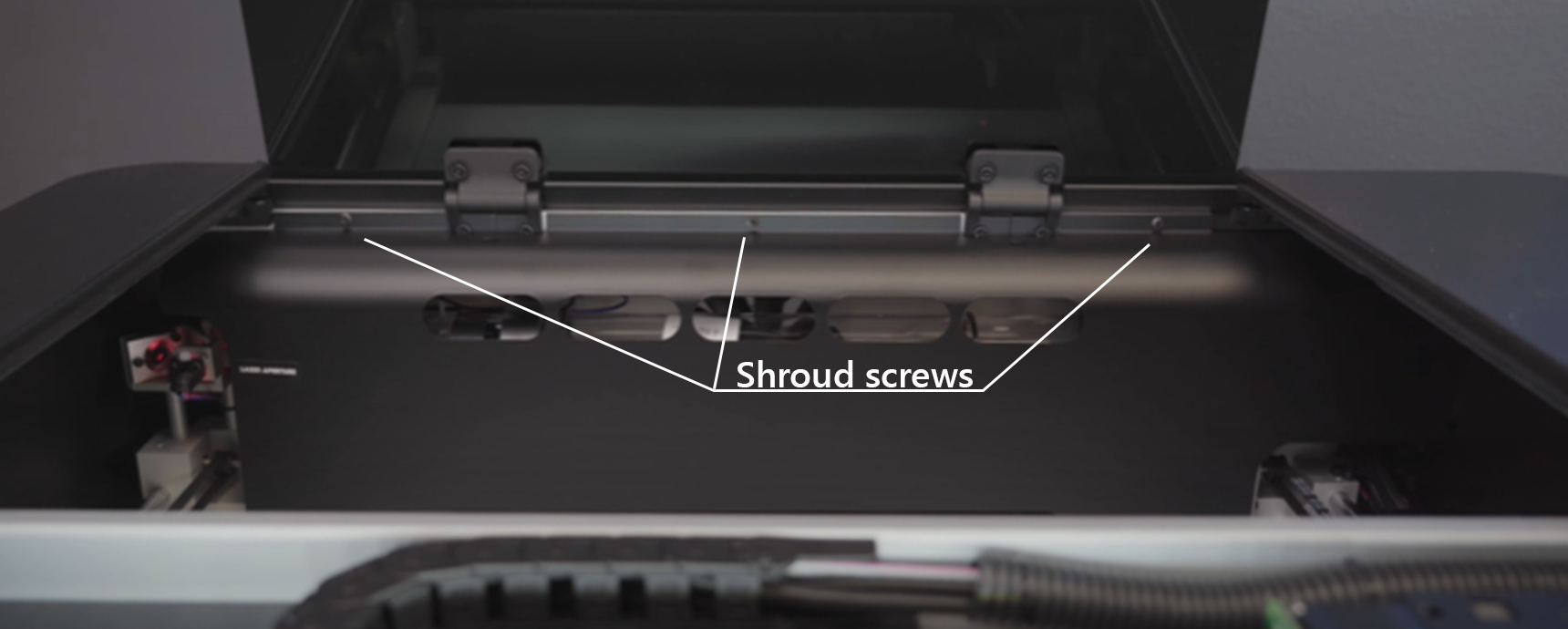

  1. Using the 2.5mm hex key, unscrew the 3 screws at the top of the shroud.
    Make sure to keep screws safe for reinstallation later.


  1. Lean shroud forward, slightly angle it, and pull up to remove it from the workspace. Set aside for reinstallation later.

Still having Issues?

Please create a Support Ticket by using the button below or sending an e-mail to support@fslaser.com stating you've done all previous troubleshooting steps.

  • When submitting via an e-mail you may attach any pictures, videos and project files needed for support to see.
  • When submitting a ticket using the button below please either respond to the automated generated email stating we have received the ticket with your pictures, videos and project files or upload these to a Google Drive or Dropbox folder and include this link within the support ticket "Your Issue" dialog upon creation.
