Belt Replacement Instructions:
Side Belts:
- Power Off Machine: Wait at least 1 hour for capacitors to discharge.

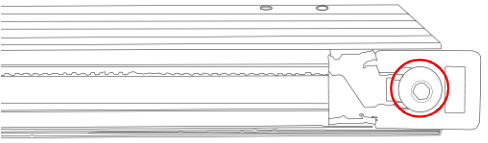

- Loosen Retaining Screws: Remove the M4 retaining screws and washers so that the old belt can be removed and discarded.
- Slip the belt out: Pull it away from the gantry.
- Locate T-nut: The T-Nut and M4 screw are needed to replace the belt.
5. Preparing New Belt: Place the T-Nut under the belt and thread the M4 screw into both.
- Mount The New Belt: Attach the new belt to the same location making sure the T-Nut slides into the gantry.
- Tighten Screws: Once both ends are in place tighten the screws to secure and retain the belt.
Gantry Belt:
- Power Off Machine: Wait at least 1 hour for capacitors to discharge.
-
Locate Belt Retaining Screws: The screws for the gantry belt are located behind the laser head assembly. (see below).
- Loosen Retaining Screws: Remove the M4 retaining screws and washers so that the old belt can be removed and discarded.
- Mount The New Belt: Run each end of the new belt through the mounting slot.
- Tighten Screws: Once both ends are in place tighten the screws to secure and retain the belt.
- Loosen the motor on the mount: Once the belt has been installed on the rail, loop over the drive motor and pull the belt then re-tighten the bolts.
- Tension the belt: Pull on the motor on the mount with your hand. Moderate to strong force is recommended, then re-tighten the bolts. If the motors do not jog, verify that the motors are connected to the control card.
Still having Issues?
Please create a Support Ticket by using the button below or sending an e-mail to support@fslaser.com stating you've done all previous troubleshooting steps.
- When submitting via an e-mail you may attach any pictures, videos and project files needed for support to see.
- When submitting a ticket using the button below please either respond to the automated generated email stating we have received the ticket with your pictures, videos and project files or upload these to a Google Drive or Dropbox folder and include this link within the support ticket "Your Issue" dialog upon creation.
