Belt Installation Instructions:
Side Belts:
- Power Off Machine: Wait at least 1 hour for capacitors to discharge.
- Remove the Retaining Screws: Unscrew the M4 screws on the belt so that the belt can be removed and discarded. We recommended removing one side at a time.
- Remove the Belt.
- Mount The New Belt: Attach the new belt to the same location making sure the M4 screws slides into the gantry.
- Tighten Screws: Once both ends are in place tighten the screws to secure and retain the belt.
Gantry Belt:
- Power Off Machine: Wait at least 1 hour for capacitors to discharge.
-

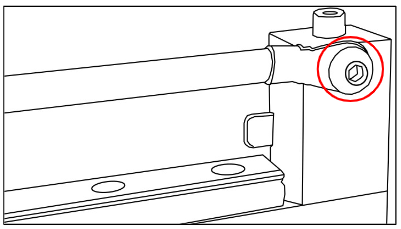

Locate Belt Retaining Screws: The screws for the gantry belt are located behind the laser head assembly. (see below).
- Loosen Retaining Screws: Remove the M4 retaining screws and washers so that the old belt can be removed and discarded.
- Mount The New Belt: Run each end of the new belt through the mounting slot.
- Tighten Screws: Once both ends are in place tighten the screws to secure and retain the belt.
- Loosen the motor on the mount: Once the belt has been installed on the rail, loop over the drive motor and pull the belt then re-tighten the bolts.
- Tension the belt: Pull on the motor on the mount with your hand. Moderate to strong force is recommended, then re-tighten the bolts. If the motors do not jog, verify that the motors are connected to the control card.
