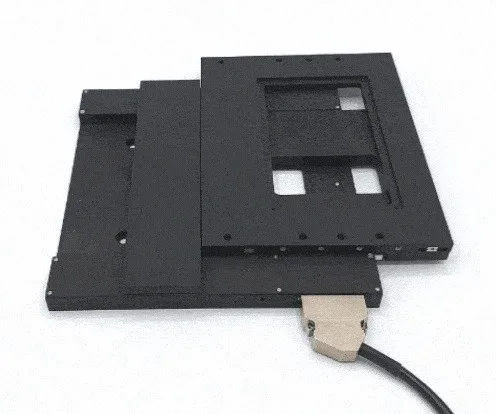

Piezo Compact XY Stage

Piezo Compact XY Stage

$39,500.00

Rotaries and Linear Extensions

Ultra low profile XY Stage; Dimensions: 215x215x25mm; Travel Range: 130x100mm.

Weight: 30.0 lbs

  • Ultra low profile XY Stage
  • Dimensions: 215x215x25mm
  • Travel Range: 130x100mm
  • 3kg payload capacity
  • Utilizes closed loop silent Piezo high precision motors
  • 1um resolution encoder (50nm also available)
  • No screws or belts, closed loop piezoelectric motor XY table for finest placement accuracy under a laser.
  • Typical use case is to mount external camera on left side and laser on right
