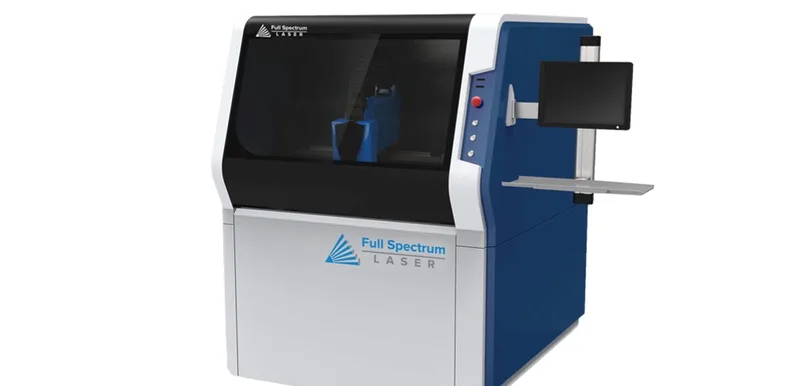

MC-Series Compact 1000W Fiber Laser Metal Cutter

Perfect for space constrained applications, the MC-Series Compact 1000 Fiber Laser Metal Cutting Machine operates at the same laser power and capabilities as the flatbed 1000w fiber laser but in a footprint that will fit through a regular doorway. Rapidly cut many metals with a kerf less than 25um (0.001"): alloy/carbon/stainless steel, copper, aluminum, gold, silver, titanium. Applications include sheet metal enclosures, car bodies, jewelry and more!

Tech Specs

• Available in two compact sizes: 20" x 20" cutting area and 4'x3' area
• Energy efficient: lowest running cost for cutting metal
• Capacitive auto-height adjusting cutting head
• Closed loop servo motors w/ ballscrew for rapid precise cutting
• Low power draw (less than 2kW)
• Enclosed design protects against stray radiation
• Programmable cutting assist gas solenoid
• 1070nm fiber laser has 3x to 10x the absorption efficiency of CO2 for cutting metal
• Laser is contained inside a fiber optic cable (no mirrors to adjust)
• 10x smaller spot sizes than 10.6um CO2 type lasers
• Solid state laser lasts over 50,000hrs
• Various power options from 200W to 2kW (default 1000W)
• Easily cuts through 6mm carbon steel, 3mm stainless, 2mm aluminum (1000W)

• Cutting Area - 51" x 35" (1300mm x 900mm) or 20” x 20” (500mm x 500mm) options
• Machine Dimensions - 100" x 84" x 78" (2.5m x 2.1m x 2.0m) or "61" x 55" x 73" (1.6m x 1.4m x 1.9m)
• Weight - 3307 lbs ( 1500 kg ) or 1543 lbs ( 700 kg )

• Laser Type - Solid state CW 1070nm Fiber Laser
• Laser Power - 1000W
• Max. Cutting Speed - 25m/min
• Positioning accuracy - ≤±0.08mm/1000mm
• Repeatability accuracy - ≤±0.04mm

• Carbon Steel (O2) - Up to 6mm with 0.8 m/min max. cutting speed
• Stainless Steel (Air) - Up to 3mm with 1.5 m/min max. cutting speed
• Galvanized Plate (O2) - Up to 3mm with 1.0 m/min max. cutting speed
• Aluminum Plate - Up to 3mm with 0.8 m/min max. cutting speed
• Copper Plate - Up to 2mm with 0.8 m/min max. cutting speed

• Driving System - Closed Loop Servo w/ Ball Screw
• Cooling Mode - Refrigerated Water Chiller

• Parts/Labor - 1 year limited warranty (excludes consumable items)
