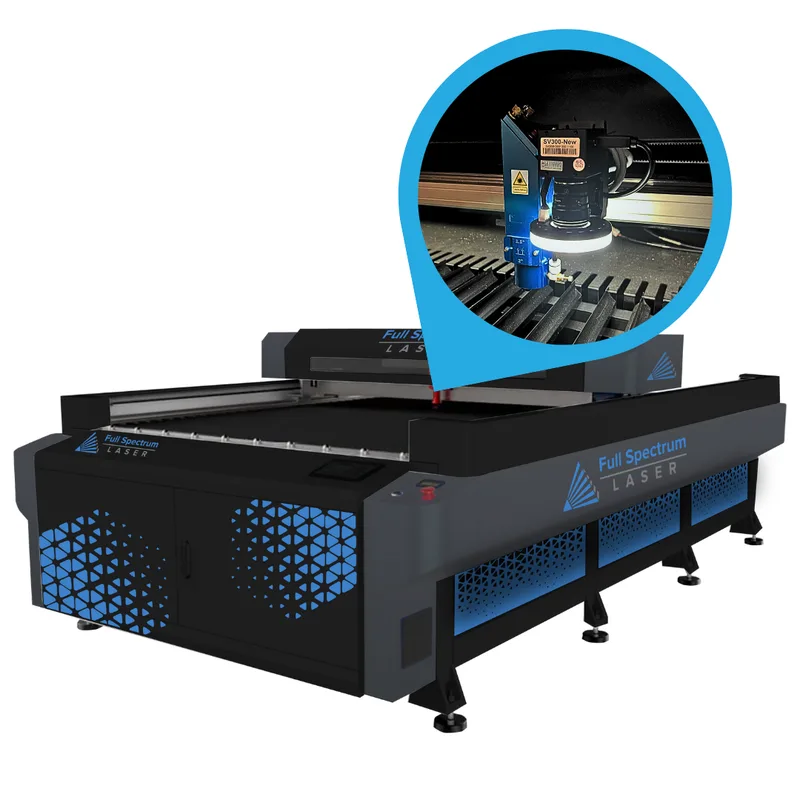

Atlas VISION 4'x8' 150W Flatbed CO2 Industrial Laser System

SKU: MCFBCO2V

$30,000.00

CO2 Gantry

Laser power - 150W E-CO2 Standard; Built-In Camera; Laser tube - E-CO2 laser tube, 10.6 µm wavelength Lifetime: up to 10,000 hours.

Motor Type *

More Info →

Laser Power Source *

More Info →

Weight: 2000.0 lbs

Dimensions: 143.0" × 82.0" × 55.0"

MC-Series Atlas VISION 4'x8' 150W CO2 Industrial Flatbed Laser System & Camera VISION System

Atlas VISION is a cost-optimized 4'x8' flatbed cutting machine that can cut a wide range of materials including wood, acrylic, leather and more. Available in standard 150W E-CO2 tube laser power as well as advanced RF CO2 options.

Tech Specs

MAIN FEATURES

Laser power - 150W E-CO2 Standard
Built-In Camera
Laser tube - E-CO2 laser tube, 10.6 µm wavelength Lifetime: up to 10,000 hours
Working area - 98.42" x 51.18" (1,300 mm x 2,500 mm)
Focus lens - 2.5", also supports 4" lenses
Working platform - Knife-blade
Power supply - AC 110V (±10%) 60Hz
Transmission - Belt driven Stepper or Servo motor
Connection - USB Cable / Ethernet Cable
Certification - CE, ISO
Class - Class 4 laser
