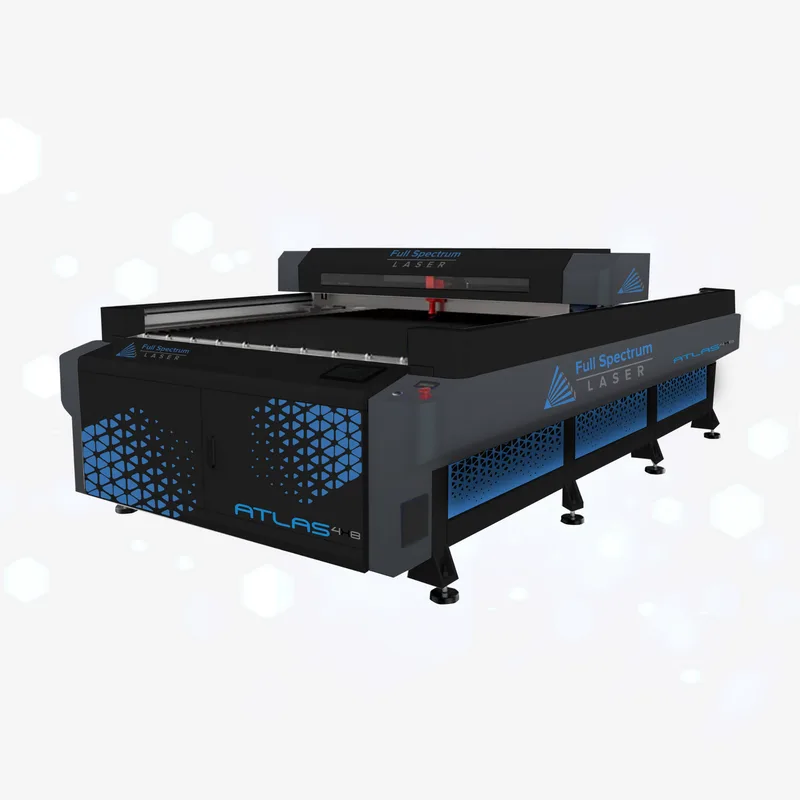

Atlas 4'x8' 150W Flatbed CO2 Industrial Laser System

Atlas 4'x8' 150W Flatbed CO2 Industrial Laser System

SKU: MCFBCO2

$19,995.00

CO2 Gantry

Laser power - 150W; Laser tube - E-CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: up to 10,000 hours; Working area - 98.42" x 51.18" (1,300 mm x 2,500 mm).

More Info →

Weight: 2000.0 lbs

Dimensions: 143.0" × 82.0" × 55.0"

MC-Series Atlas 4'x8' 150W CO2 Industrial Flatbed Laser System

Atlas is a cost-optimized 4'x8' flatbed cutting machine that can cut a wide range of materials including wood, acrylic, leather and more. Available in standard 150W E-CO2 laser power.

Tech Specs

MAIN FEATURES

  • Laser power - 150W
  • Laser tube - E-CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: up to 10,000 hours
  • Working area - 98.42" x 51.18" (1,300 mm x 2,500 mm)
  • Focus lens - 2.5", also supports 4" lenses
  • Working platform - Knife-blade
  • Power supply - AC 110V (±10%) 60Hz
  • Transmission - Belt Driven Stepper or Servo motors
  • Connection - USB Cable / Ethernet Cable
  • Certification - CE, ISO
  • Class - Class 4 laser

AUXILIARY EQUIPMENT

  • Extraction System - Exhaust Fan 1HP / 750W 110V
  • Assistant Air - Air compressor 110V
  • Water Chiller - Industrial Chiller CW 5200

WEIGHT & DIMENSIONS

  • Machine Dimensions - 162" x 79" x 58" (4114.8 mm x 2006.6 mm x 1473.2 mm)
  • Weight - 2,700 lbs (1,200 kg)

PERFORMANCE

  • Max. moving speed - 16in/s (400mm/s)

MAX CUTTING THICKNESS (150W)

  • Acrylic - 1" (25.4mm)
  • Soft Wood - 3/4" (19mm)
  • Plywood - 1/2" (12.7mm)
  • Leather - 1/4" (6.3mm)
  • Rubber - 1/4" (6.3mm)

WARRANTY

  • 1 year standard, 2 years optional (excludes consumables)
