Muse Titan 48x24 (Pre-Order)

$8,545.00
SKU:
MUSETITAN-75W

Product Overview


  • Browser BASED SOFTWARE - no internet required. (Windows, Mac and Linux compatible).
  • REMOVABLE FLOOR - enables users to engrave objects larger than the machine itself
  • FOUR WAY PASS-THROUGH - coupled with the removable floor the feet of the machine allow for material to be fed through any side of the machine.
  • FRONT TO BACK PASS-THROUGH - new feature without removing the floor but still feed material 48" through machine
  • SELF TENSIONING TORSION SPRINGS - patent pending design with 100x more spring force than the competitors allow for greatly enhanced stiffness and motion accuracy
  • X,Y, AND Z ENCODERS - Allow for sensorless homing and closed loop control for increased speed and accuracy (optional).
  • DUAL Y-AXIS OMEGA DRIVE SYSTEM - uses half the belt length of traditional belt pulley systems for decreased belt stretch for higher accuracy
  • ROTARY ATTACHMENT - (optional) allows for cylindrical objects such as cups to be engraved
  • 7" LCD TOUCH SCREEN - allows users to control major functions right from the machine.
  • 3D CAMERA - (optional) takes 3D images of what's inside your laser for design placement, along with the ability to watch jobs in progress.
  • AUTO-FOCUS - keeps the laser in focus even when running a job.
  • TECHNICAL SUPPORT - via phone and email.
  • 1 YEAR WARRANTY
Tech Specs
Materials
Software
What's Included
Weight & Dimensions
  • Workspace Area: 48" x 24"

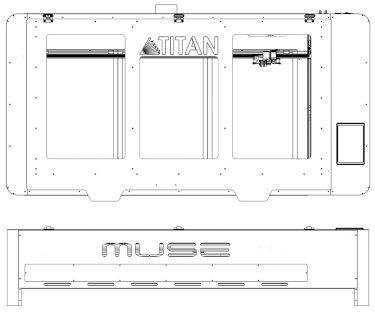

  • Machine Dimensions:66" x 33" x 14"
  • Weight: 176 lbs
  • Z-Table Range: 3.5" (89mm)
Laser
  • Laser Classification: Class 3R
  • Laser Type: C02
  • Laser Power: 90 watt
  • Focus Lens Included: 2.0 Inch
Power
  • Power Supply: AC 110v native (220V option available
  • Gross Power: < 1000W
System
  • Operation Modes: Precision Engraving, Cutting, or a Combination
Material Cuts Engraves
Acrylic
Coated Metals x
Fabric
Glass x
Leather
Paper
Rubber
Stone x
Wood
Please check out our applications page for more information about materials.
Software
  • RetinaEngrave v3.0
Compatibility
  • PC, Mac & Linux
Browser Compatibility
  • Google Chrome (recommended), Safari, Firefox, Edge
File Import Options
  • JPG, PNG, BMP, TIFF, SVG, DXF, DWG
Minimum Screen Resolution
  • 1024 x 768 Pixels
Wireless Compatibility
  • Ability to Connect Through Local Network (Ethernet or Wireless) without Internet Connection
  • 802.11n
  • Exhaust Fan
  • Air Compressor
  • 3X Honeycomb Table
  • Water Chiller

Inspire. Design. Create.

Muse Titan has a large cutting area of 48"x24" but can fit through any door way and placed on a standard tabletop. Muse Titan features FSL's newest advances: 3D Scan and 3D Cut Technology, optional rotary, optional encoders on all motor axis, removable bottomless Z floor and the powerful, yet easy-to-use, self-hosted browser based RetinaEngrave v3.0 laser control and design software. From creating original art to starting your own small business, Muse offers the best, most innovative technology in the desktop laser market.

Muse Titan Desktop Laser System

Muse Titan Desktop Laser System

Muse Titan LCD Touchscreen

Key Features

  • Patented Removable floor and four way pass-through to engrave on material larger than the internal work area
  • Travelling tube gantry design for easy alignment
  • RetinaEngrave v3.0 self-hosted browser-based laser control and design software (still operates without live Internet connection)
  • Intel RealSense™ 3D Camera option 3D scans every pixel for precision XY and focus position
  • Motorized Real-time Autofocus option for curved objects
  • Sleek onboard LCD touchscreen control
  • Cuts up to 1 inch material
  • Engraves up to 1000 dpi resolution
  • optional 5120 dpi motor encoders on X,Y,Z axes for closed loop control reliability and accuracy
  • Optional accessories like the rotary and riser engrave on rounded or larger objects

Motorized Real-time Autofocus

Streaming real-time 3D camera depth data allow automatic Z height adjustments while the job is running to respond to dynamic focusing while the job is running. Stay in focus even on curved surfaces and when surfaces are dynamically changing/warping during a job. In addition, a clever mechanical sensor built into the laser head itself provides backup height data when 3D camera data is unavailable.

Motorized Real-time Autofocus

Intel RealSense™ 3D Camera

Intel RealSense™ 3D Camera

2D camera technology can only be used for flat surfaces and cannot compensate for curved or warped surfaces or varying heights. Muse 3D Vision with Autofocus utilizes Intel’s 3D RealSense technology to accurately map millions of 3D data points. Engrave or cut on variable material heights in a single job, including curved surfaces.

Watch your jobs on mobile devices and more! A live view of the camera is available on the touchscreen, within RE3 and on mobile devices.


RetinaEngrave v3.0

The Best Laser
Control Software
on the Market!

The powerful, easy-to-use RetinaEngrave v3.0 software lives right on your laser and is accessed using your favorite web browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever.

Welcome to the future of laser control & design software!

The Best Laser Control Software on the Market!

Muse Titan Laser at a Glance

Muse at a glance
Standard Laser Tube: 75W CO2
Laser Tube Upgrades: 90W, 100W CO2
X-Y Working Area: 48" x 22"
Working Z-Height: 3.5"
Removable Floor: Yes
Rotary Available: Yes
Power Requirements: 120V AC

Rotary Accessory

The Perfect Accessories

Upgrade your cooling system for peak performance of the laser.

Engrave curved objects with a rotary attachment. Work with tumblers, glassware and more.

Increase your laser tube power to accelerate cutting speed and marking ability.

...plus fume extractors, specialty focus lenses and more!


Cut. Mark. Engrave.


Cutting Technology

Muse is the laser cutter micro-manufacturers and creative makers have been waiting for, and you can have it today. From creating original art to replicating pieces for rapid construction, Muse offers the best innovative technology on the market.
halloween circular wood cuts

Marking Technology

Mark material using quick pulses of the laser to create sharp images from pictures or original art.

3D Engraving Technology

Muse takes engraving to a whole new level, creating pieces of amazing craftsmanship with simulating 3D effects.

halloween circular wood cuts

















Cutting Technology

Muse is the laser cutter micro-manufacturers and creative makers have been waiting for, and you can have it today. From creating original art to replicating pieces for rapid construction, Muse offers the best innovative technology on the market.













Marking Technology

Mark material using quick pulses of the laser to create sharp images from pictures or original art.















3D Engraving Technology

Muse takes engraving to a whole new level, creating pieces of amazing craftsmanship with simulating 3D effects.

Applications


Wood

Easy to obtain, wood perfectly demonstrates the simple beauty and versatility of what a laser cutter can do.

Acrylic

Open your design possibilities with all the colors of the rainbow using acrylic in your projects.

Fabric

Cut patterns in a flash to create costumes, plush toys, special banners and even clothing.

Leather

Customize leather goods and clothing with personalized engravings. Create unique belts, holsters, backpacks and more.

Paper

Take your artistic skills to a new level, cutting paper with speed and precision to create delicate designs. Best in industry vector control algorithms cuts or scores paper with no burn marks.

Cardboard

Never underestimate the value of cardboard to create prototype designs and low-cost products.

Videos


Downloads

Download the Muse Manual
Muse Manual
Download the Muse Quickstart guide
Muse Quick Start
Download the RE3 Manual
RetinaEngrave v3.0 Manual
Download the RE3 Quickstart guide
RetinaEngrave v3.0 Quick Start
