FSL Muse 1064nm Fiber Open Galvo 3D Scan 3D Mark

Was: $10,495.00
Now: $6,099.00
SKU:
Muse Galvo-20
Availability:
In Stock

Product Overview


  • LOCALLY HOSTED BROWSER BASED SOFTWARE - no internet required. (Windows, Mac and Linux compatible). Try it here
  • OPEN PLATFORM - enables users to engrave objects larger than the machine itself.
  • ROTARY ATTACHMENT - (optional) allows for cylindrical objects such as cups to be engraved.
  • MATERIAL DATABASE - common materials such as aluminum, steel, black acrylic, lexan, leather, granite and more have built in presets for easy workflow.
  • 7" LCD TOUCH SCREEN - allows users to control major functions right from the machine.
  • 3D CAMERA POWERED MOTORIZED AUTOFOCUS - takes 3D images of what's inside your laser for extremely accurate design placement on multiple height objects. Motorized Z stage automatically focuses multiple times to mark non-flat object.
  • ULTRA-RELIABILITY - Solid-state 24V DC 1064nm fiber laser requires no water cooling and has no consumable parts with estimated lifetime of more than 25,000hrs.
  • ULTRA-PRECISION - Closed loop galvonometer scanners with encoder feedback project the laser beam with no additional mechanical parts such as belts, gears or pulleys to ensure perfect results each time
  • POWER OPTIONS - 20W for use with 210mm lens for 6"x6" working area (150mmx150mm) or select 50W laser with 430mm lens for up to 12"x12" working area (300mmx300mm)
  • TECHNICAL SUPPORT - via phone and email.
  • 1 YEAR WARRANTY
Tech Specs
Materials
Software
What's Included

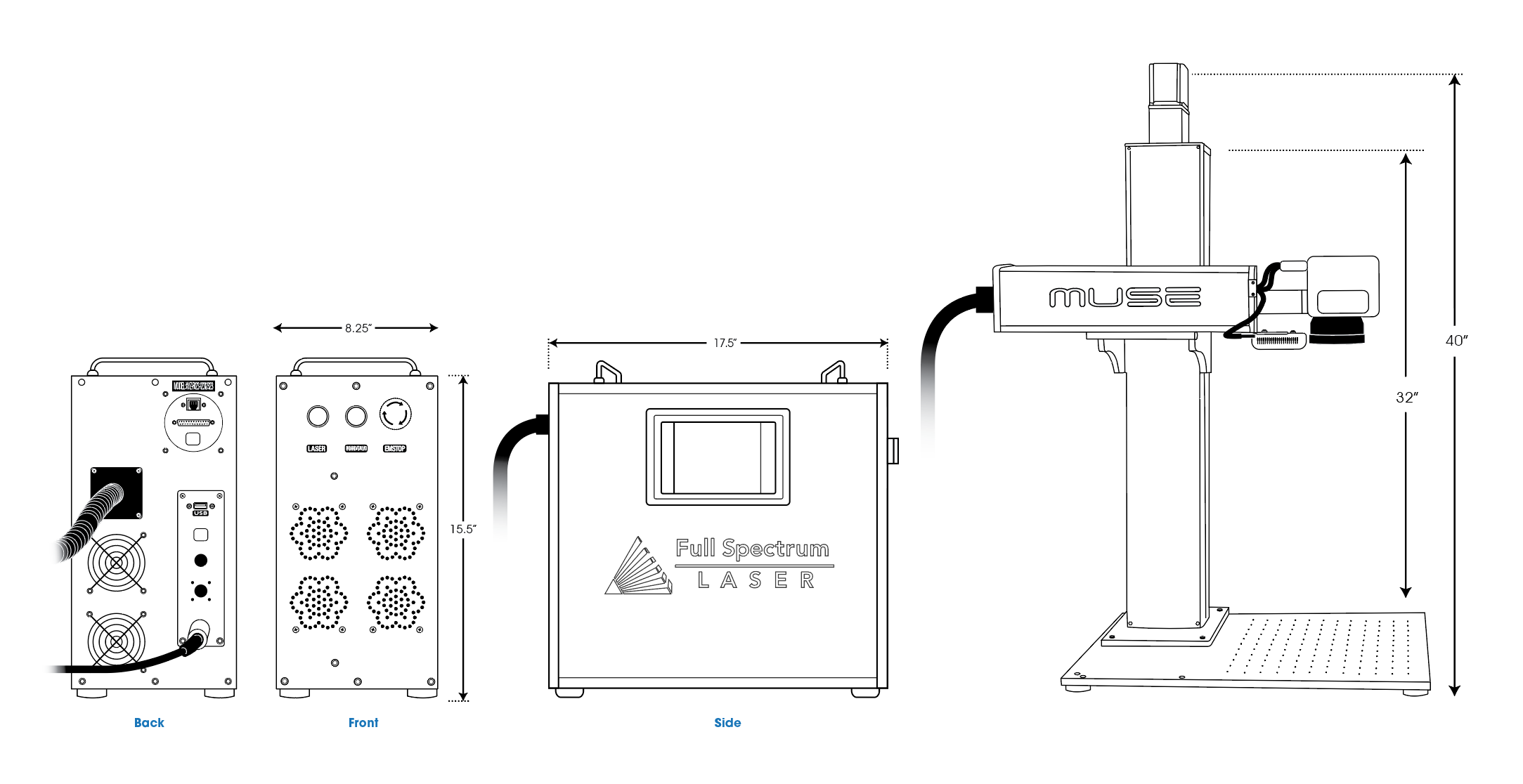

Weight & Dimensions
  • Engraving Area: 4" x 4" up to 12" x 12"
  • Machine Dimensions: 25.5" x 13" x 23.5 + 18.5" x 8" x 16.5
  • Weight: 320 lbs
  • Z-Table Range: 16.2 " (412mm)
Laser
  • Laser Classification: Class 4
  • Laser Type: Pulsed Fiber Laser
  • Laser Power: 20w, 30w, 50w
  • Focus Lens Included: 160mm
Power
  • Power Supply: AC 110v native (220V option available)
  • Gross Power: < 1000W
System
  • Operation Modes: Precision Raster, Vector, or Combination
  • Motion Control: X+Y= Galvanometer Z= STepper Motor
Material Vector Raster
Aluminum
Nickel
Copper
Titanium
Rubber
Stone
Leather
Please check out our applications page for more information about materials.
Software
  • RetinaEngrave v3.0
Compatibility
  • PC, Mac & Linux
Browser Compatibility
  • Google Chrome (recommended), Safari, Firefox, Edge
File Import Options
  • JPG, PNG, BMP, TIFF, SVG, DXF, DWG
Minimum Screen Resolution
  • 1024 x 768 Pixels
Wireless Compatibility
  • Ability to Connect Through Local Network (Ethernet or Wireless) without Internet Connection
  • 802.11n
  • Power Supply Tower
  • Fiber Laser Source
  • Intel Real-Sense 3D Camera
  • 7 Inch Touch Screen
  • Optics
  • Z Stage

100x Faster. 10x Finer Detail.

Using a 1064nm source, the spot size is 10x smaller than a typical CO2 laser for 10x better detail. Fast rotating stationary mirrors project a beam of light down with no physical movement of the laser head to allow up to 100x faster processing times. Muse Open Galvo is the best galvo engraving laser on the market and keeps getting better with Intel’s RealSense, LCD touchscreen functions and the powerful, yet easy-to-use, self-hosted browser based RetinaEngrave v3.0 laser control and design software. From creating original art to starting your own small business, Muse offers the best, most innovative technology in the desktop laser market.



3D Scan-Mark with Motorized Autofocus

The Muse Galvo utilizes a Intel’s 3D RealSense camera to accurately map millions of 3D data points to create a 3D workspace. This allows multiple objects with varying heights to be engraved - all in one job simultaneously. The standard 3D Camera uses two stereo cameras combined with a laser dot projector to create the 3D height map. Also available is a Time of Flight (ToF) 3D Camera upgrade which measures the speed of light at millions of points to create the height map. ToF cameras are much better at resolving reflective and transparent objects which are otherwise unresolvable by the standard laser dot projector. Using 3D height data, objects outside a normal marking field of view are split and marked with the synchronized Z motor



The Perfect Accessories

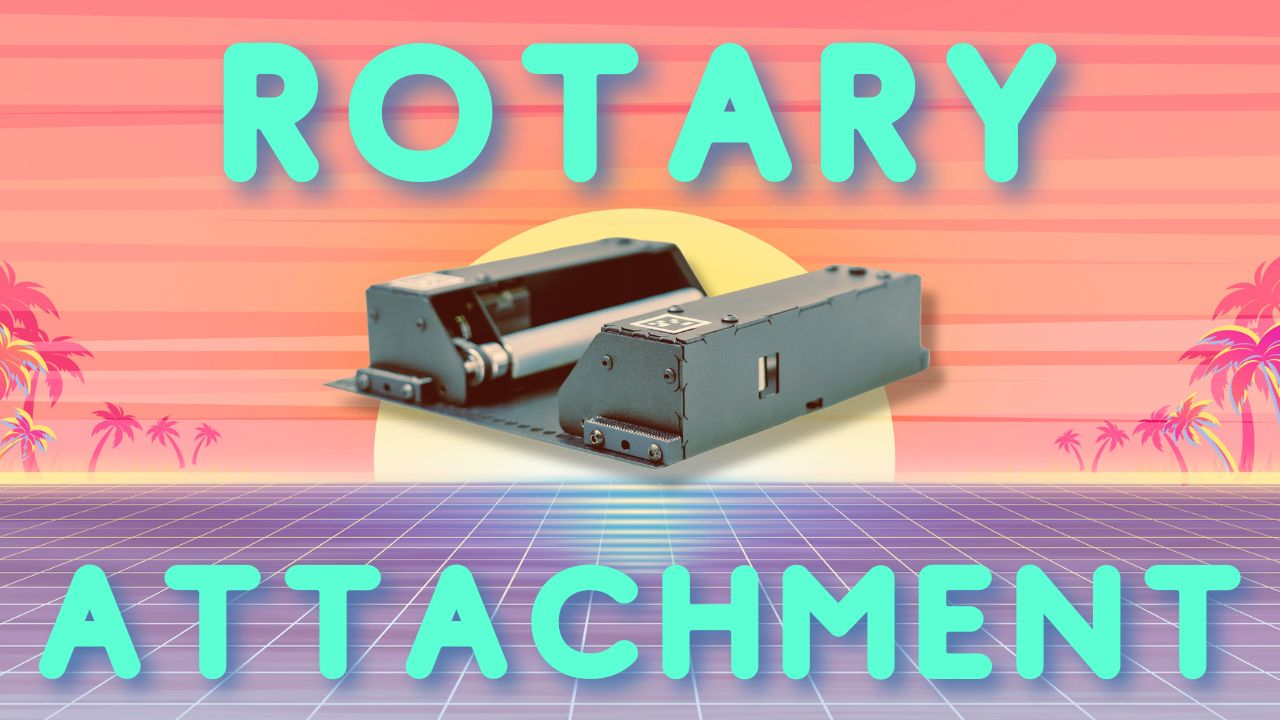

Engrave curved objects with a rotary attachment.

Works 100x faster than non-galvo gantry based lasers

Use the 3D camera to determine object diameter

Work with tumblers, glassware and more.

Increase laser wattage to accelerate engraving speed, depth and marking ability.

Fume extractors, specialty focus lenses and more!



RetinaEngrave v3.0

The Best Laser
Control Software
on the Market!

The powerful, easy-to-use RetinaEngrave v3.0 software lives right on your laser and is accessed using your favorite web browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever.

Welcome to the future of laser control & design software!

The Best Laser Control Software on the Market!

Applications


Polymers Open your application possiblities.Popular applications include firearms magazines.


Metals In the blink of an eye seemlessly engrave metals; aluminum, steel, copper, bronze, silver, gold and more!


Leather Customize leather goods and clothing with personalized engravings. Create unique belts, holsters, backpacks and more.


Stone Engrave onto a variety of rocks and crystals. The possibilities are endless.
