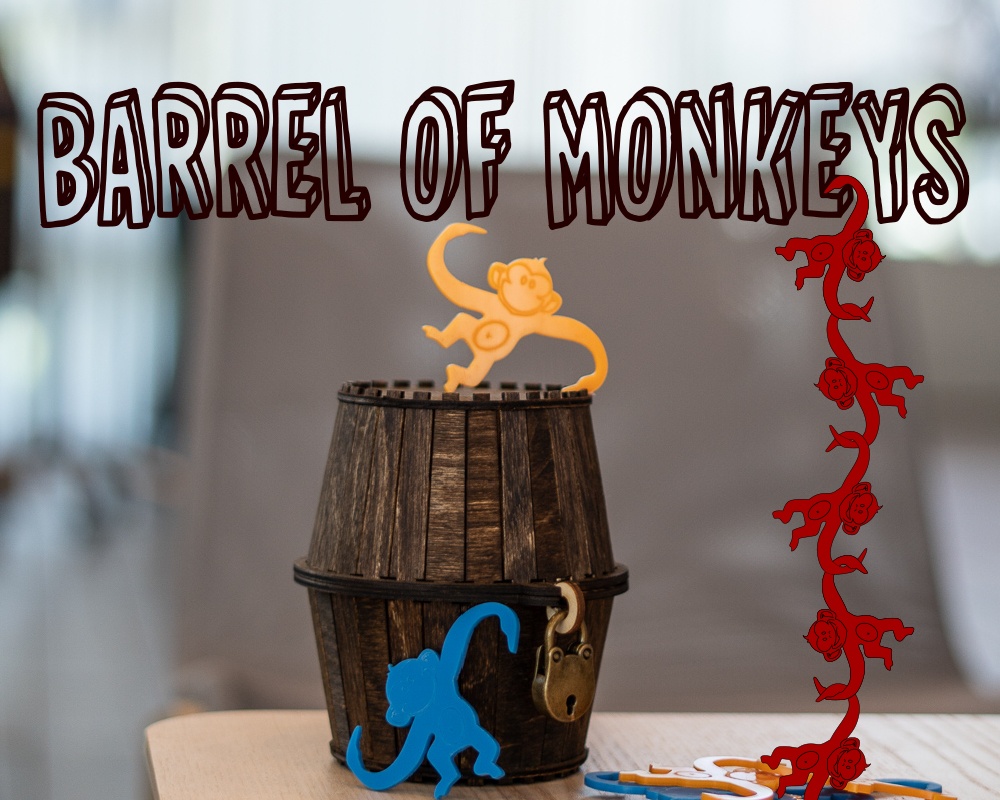

Barrel of Monkeys
We Don't Train Monkeys, We Make Them!

- Safety First: Ensure workspace is free of fire, electrical and other safety hazards. Be aware of all safety issues when cutting materials with a laser. Always have a fire extinguisher on hand
- Power on the laser and all of its components.
- Ensure that:
- The laser is powered and the boot up cycle begins on the screen.
- The cooling system is connected properly and water is flowing through the tube.
- The air compressor is powered and exhausting air to the laser head.
- The exhaust system is on and vented into a safe location. - Connect to RetinaEngrave 3.0 software using your machine’s touch screen to copy the software IP address into your favorite browser. The Wired IP address is displayed at the bottom of your touch screen.
- Import your design and adjust power and speed settings. Double check settings including the number of passes and cut order.
- Insert material into the laser bed. Use the focus tool to adjust to the top of the material. Focusing should be done each time a new material is introduced.
- Use the “Perimeter” function to ensure that the file will fit within the cutting area. Adjust accordingly.
- Run the job file. Do not leave a job running unattended.
CUT
Import the included files and cut all the pieces from their respective materials. This file contains vector cuts.
First you will want to place the panels of the barrels into the base. There is one special panel labeled with an S, this goes into the smallest notch in the bottom panel.
These are notched tight to give a nice fit and look. *NOTE* Soaking the barrel in hot water once most of the panels are in place will help ease the barrel into shape.
Now you can add the top ring to the barrel. This is the file that you will want to modify for the specific hinge you have purchased.
The hinge could be external or internal depending on your preference.
This circular cut will hold the two halves of the barrel together along with your hinge.
You could add a laser cut lock *available in our treasure chest project* or purchase a non laser cut toy lock.
You can stain your project at this point if you would like. Also to make everything easier you could always stain your wood prior to cutting the pieces.
Finally you can cut your monkeys in any material you see fits. You can also customize your monkeys to give a more personal gift.
Difficulty: ★★
Minimum Requirements: 90W
Raw Materials: 1/8th" Material, Glue
Optional: Paint and Stain
Estimated Laser Time: 30-60 Mins
