Geometric Dog Bowl Feeders

Safety First: Ensure workspace is free of fire, electrical and other safety hazards. Be aware of all safety issues when cutting materials with a laser. Always have a fire extinguisher on hand
Power on the laser and all of its components.
Ensure that:
- The laser is powered and the boot up cycle begins on the screen.
- The cooling system is connected properly and water is flowing through the tube.
- The air compressor is powered and exhausting air to the laser head.
- The exhaust system is on and vented into a safe location.
Connect to RetinaEngrave 2.0 software using your machine’s touch screen to copy the software IP address into your favorite browser. The Wired IP address is displayed at the bottom of your touch screen.
Import your design and adjust power and speed settings. Double check settings including the number of passes and cut order.
Insert material into the laser bed. Use the focus tool to adjust to the top of the material. Focusing should be done each time a new material is introduced.
Use the “Perimeter” function to ensure that the file will fit within the cutting area. Adjust accordingly.
Run the job file. Do not leave a job running unattended.

Assemble
Assembly of these projects is very easy and straight forward.

First you must glue and clamp both corresponding cuts together for all parts. This includes front legs, back legs, tail section, head section, and body.

Once all parts are glued together they will be twice as wide and will notch perfectly into the main body (bowl holder) which is also double layered.

Starting with the back section you can notch the tail into the center slot and follow by adding the back legs to the other slots on either side.

Now moving forward you can insert the head section and front legs in a similar manner.

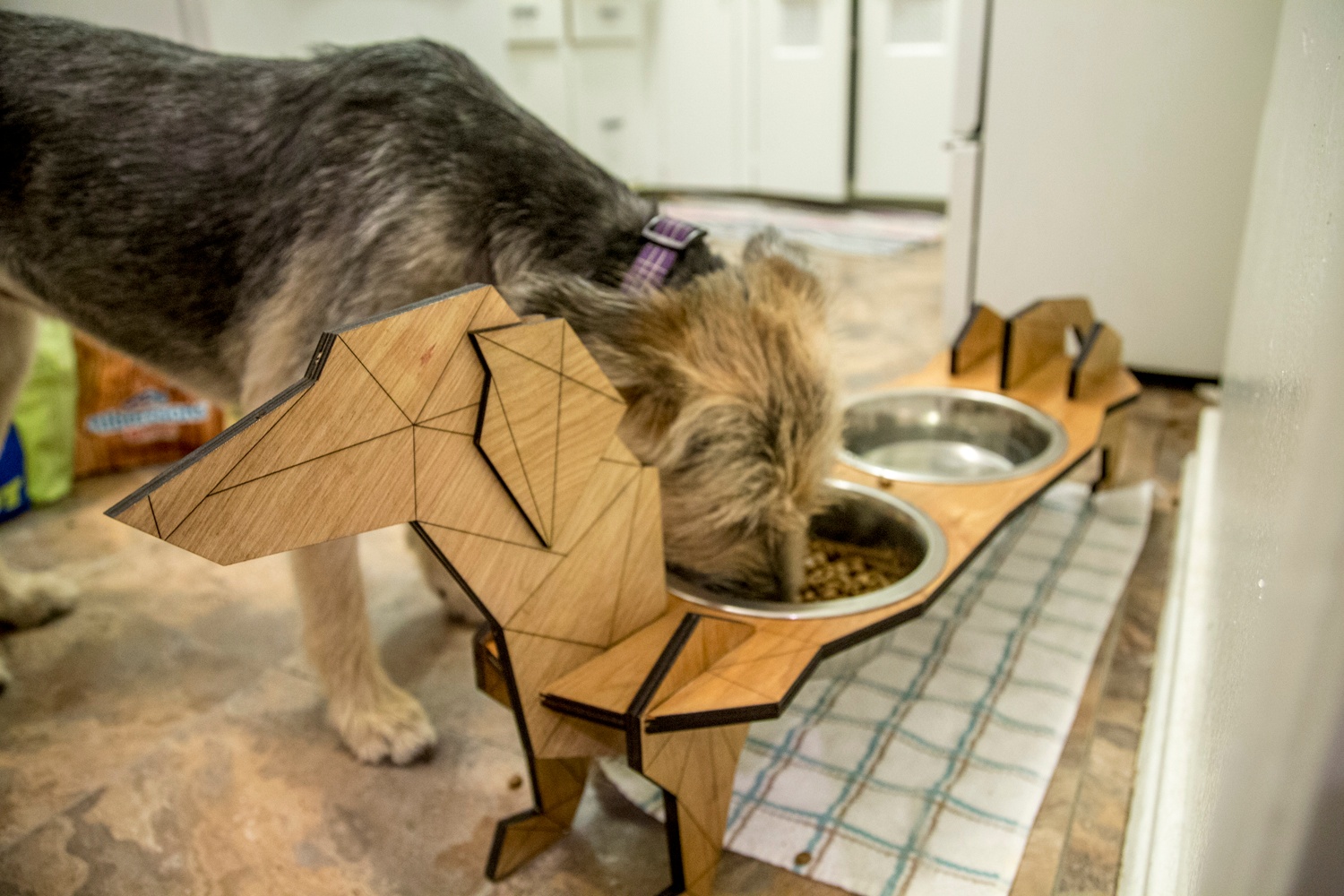

Then you can glue on each ear section to add dimension.

(Remember wood glue and clamps create the best bond when left to set for the instructed time)

Lastly, add your bowls. (The holes were sized for the most common dog bowl size)

Well Done!

See next Slide for Bonus File!

Bonus File! Use the same steps to complete this single dog bowl holder made with the hobby laser!
