Inside Full Spectrum Laser’s New
6D SynchroScan Technology
For decades, laser processing has been locked in a battle between speed and working area. Traditional galvanometer (galvo) scanners offer blistering speeds but are restricted by a limited field of view. To process larger parts, systems rely on a "move, expose, repeat" cycle using mechanical stages—a process that introduces start/stop delays and frustrating alignment errors.
Enter the 6D SynchroScan by Full Spectrum Laser (fslaser.com).
By combining a 3-axis galvo with a 3-axis motion system, the 6D SynchroScan shatters traditional field-of-view constraints. Powered by an advanced controller and ultra-fast EtherCAT motors, this 6-axis system achieves highly synchronized, real-time control, bridging the gap between massive work envelopes and ultra-fast, micron-level precision.

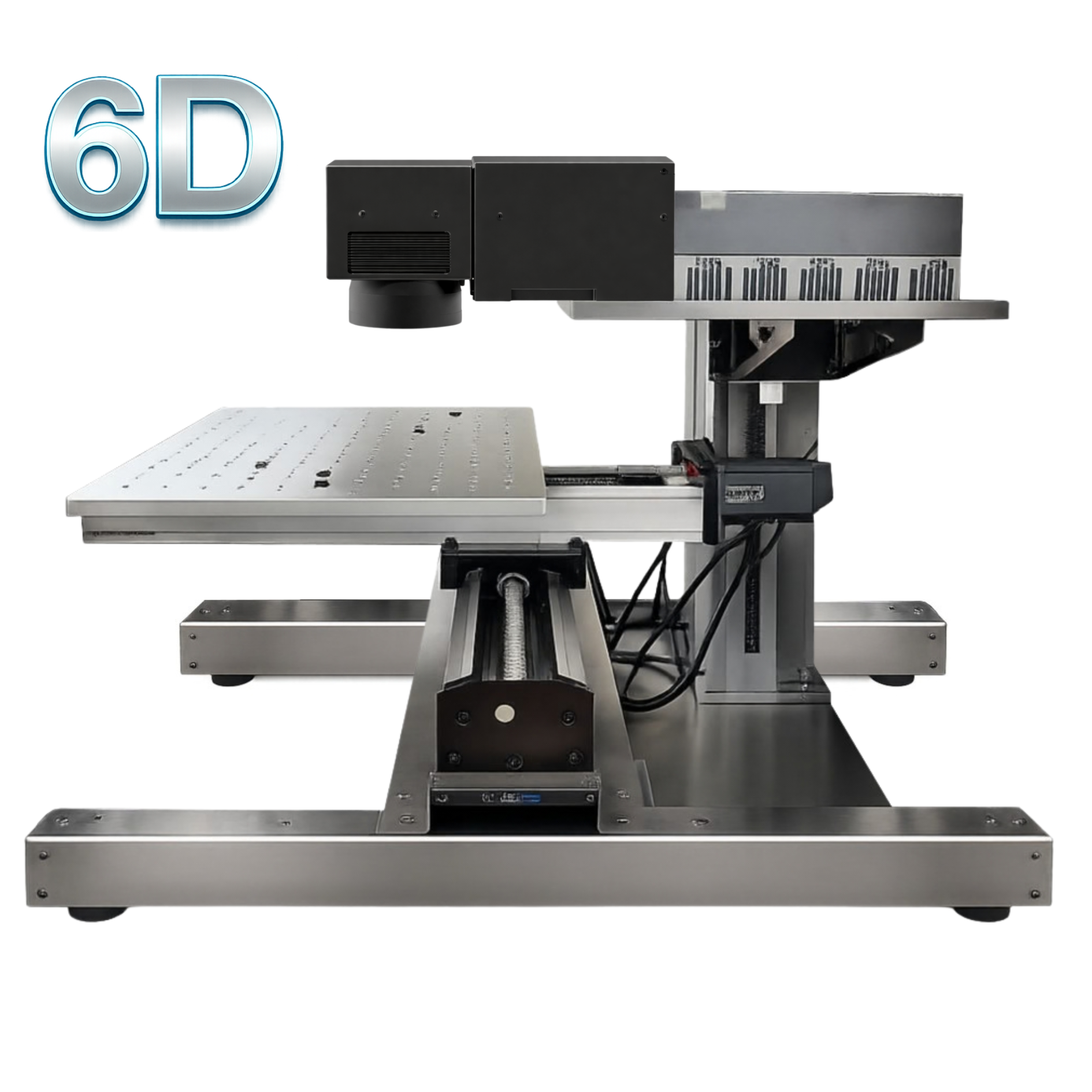

The Architecture: Total Configuration Flexibility
The 6D SynchroScan is built around a flexible 6-axis architecture that can be tailored to your specific manufacturing floor. It essentially takes the proven concept of synchronized galvo-and-motion control and elevates it with state-of-the-art responsiveness.
The system can be configured in three primary ways:
- Fixed Head, Moving Bed: The galvo remains stationary while the 3-axis motion system moves the workpiece beneath it.
- Moving Head, Stationary Bed: The galvo is mounted directly to the motion system, flying over a fixed bed.
- Combined Motion (Moving Head and Moving Bed): Both the galvo and the motion system move simultaneously, providing the ultimate flexibility for tackling highly complex geometries and distributing multi-axis movements for optimal speed and reach.
Regardless of the configuration, the true magic lies in the controller that dictates the movement.
 |
"5D" typically involves the removal of one specific layer of motion—usually the internal dynamic focus within the galvo head itself. |
|
By mounting a 3D galvo head onto a traveling gantry, the system eliminates the traditional "tiling" or "patching" issues found in large-scale engraving. Instead of marking one small square and then moving to the next, the software synchronizes the gantry's steady movement with the galvo's rapid oscillations. This creates a seamless, continuous scan across the entire workspace, ensuring perfect alignment and eliminating the visible seams or "blurry" overlap lines often seen in lesser systems. |
 |
The Game-Changing Advantages
At the heart of the 6D SynchroScan is the real-time communication between the macro-movements of the mechanical stages and the micro-movements of the galvo mirrors. This yields several massive operational advantages:
- Continuous Firing (Zero Downtime): Unlike legacy step-and-repeat systems, the laser fires continuously while the stage is in motion. By eliminating the start/stop cycle, processing times are drastically reduced.
- Flawless Continuous Marking: Because the stage and the scanner are moving in perfect harmony, the system effectively creates an "infinite" field of view. This completely eliminates seam mismatches, stitching errors, and alignment artifacts that plague traditional large-format marking.
- Seamless Servo-Galvo Coupling: The advanced controller ensures real-time, zero-latency synchronization between the high-torque EtherCAT servos and the XY2-100 galvo controllers.
- Auto-Recalibration: Precision is useless if it fades over time. The 6D SynchroScan utilizes an integrated camera system for auto-recalibration, ensuring the system maintains strict micron-level accuracy throughout its lifespan.

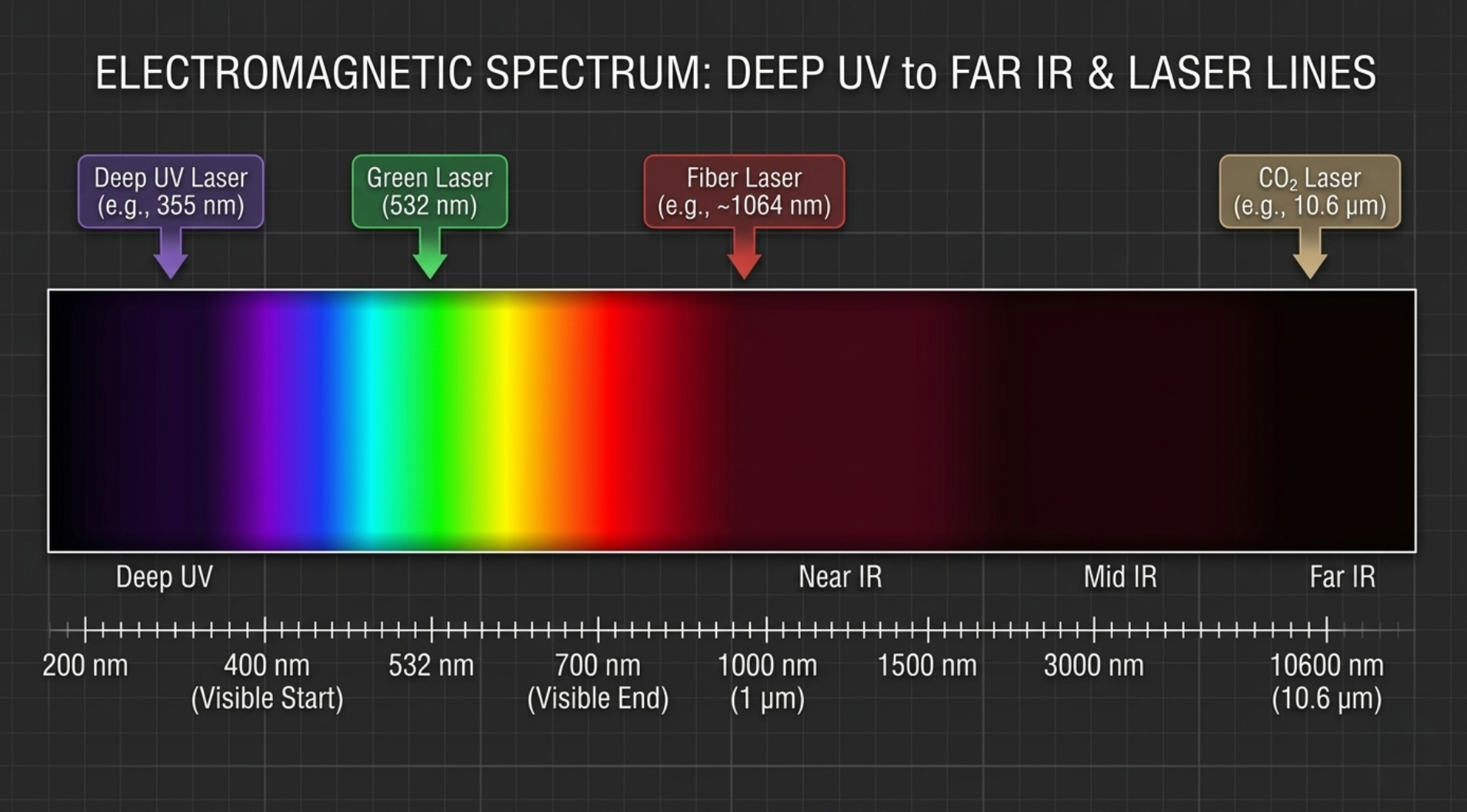

Agnostic to Laser Technology
One of the most powerful aspects of the 6D SynchroScan is its versatility. Full Spectrum Laser designed the system to be source-agnostic, meaning it can be paired with virtually any laser technology your application requires, including:
- UV
- Green
- Picosecond & Femtosecond
- Fiber
- CO2
High-Value Applications
Because it excels at both ultra-fast marking and precision cutting over large areas, the 6D SynchroScan is uniquely positioned for several high-value industries:
- Semiconductor & Microelectronics: Ideal for high-speed continuous marking or step-and-repeat operations, PCB depaneling, and micro-via drilling where micron accuracy is non-negotiable.
- Medical Device Manufacturing: Perfect for continuous, flawless marking on long or complex geometries like catheters or surgical instruments without stopping to index the part.
- Large-Format Automotive & Aerospace Parts: Enables the rapid texturing, marking, or cutting of massive dashboard panels or composite components without any visible stitching seams.
- Advanced Display Manufacturing: Cutting and patterning delicate thin films and glass over large surface areas using ultra-short pulse (picosecond) lasers.
The Bottom Line
With the 6D SynchroScan, Full Spectrum Laser is offering a solution that refuses to compromise. You no longer have to choose between the speed of a galvo and the reach of a gantry. By synchronizing the two via EtherCAT, manufacturers can achieve flawless, continuous processing at unprecedented speeds.
