Product Overview

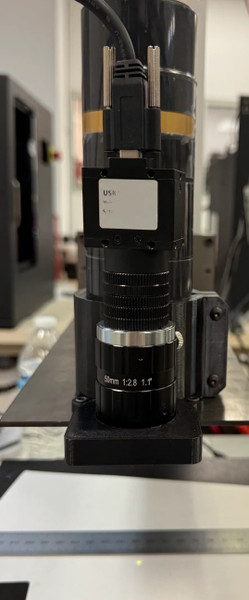

This combination of high end industrial 12 megapixel CCD camera with 1" Sensor and USB3 interface allows you to resolve the smallest details but not sacrifice large field of view or ease of use.
Designed to sit ouside the laser with a moving high precision XY table, the camera will take your pictures and align your working area then XY table will move to the right under the laser to ensure precise alignment.
Global shutter monochromatic sensors offer superior results in machine vision applications compared to rolling shutter or color cameras which employ a typical bayer layer which needs 4 pixels to resolve RGB. This camera is unique in that it has a large 1" sensor allowing large FOV even at fine details without diffraction or chromatic distortion effects.
This combination of camera and lens can resolve features 0.01mm (10 microns) as shown in the example pictures.
Specifications
| Sensor | 1" monochromatic sensor, 3.2umx3.2um pixels |
| Shutter | Global Shutter |
| Resolution | 4096x3072, 12MP |
| Lens | C-mount, Fl=50mm, F1.8 |
| Resolving power | 3um at 75mm focal distance |
| Speed at full resolution | 28 FPS |
| Mounting | Custom mounted to your FSL device, recommend XY stage with encoders |
