Product Overview
The P-Series PS48 Vision 48"x36" CO2 Laser systems in DC 90W, 120W, and 150W options as well as new Optional RF 30W, 60W and 100W options.
Designed for printed Decal Cutting, the onboard fiducial finding camera ensures perfect cuts on printed materials.
|

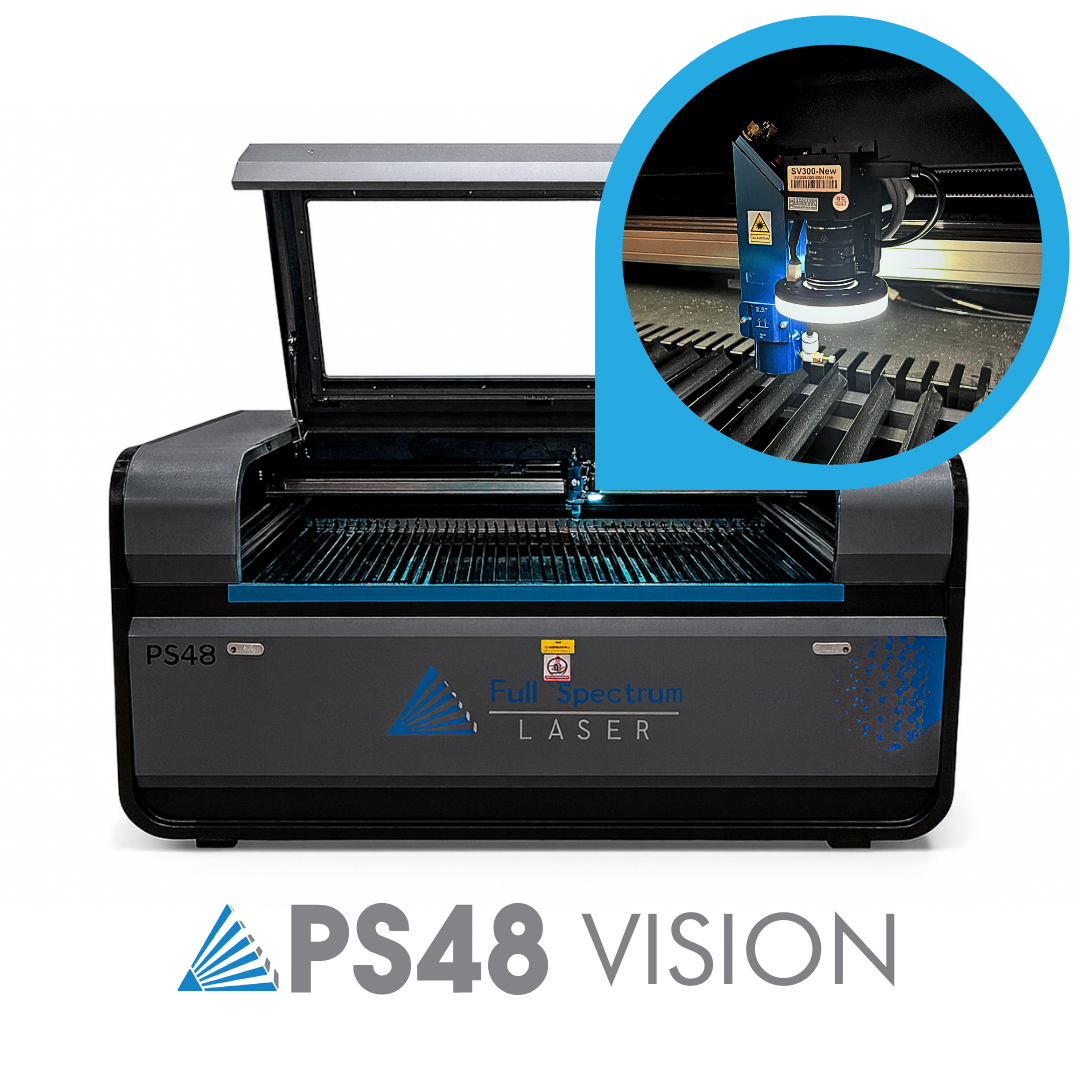

The PS48 Vision — Powered by Full Spectrum's All-New High-Performance Camera System
With the addition of Full Spectrum Laser’s cutting-edge, high-resolution camera system, our powerful PS48 CO₂ Laser has evolved into the PS48 VISION — a state-of-the-art, vision-guided cutting solution. PS48 VISION is engineered to precisely cut pre-printed materials by detecting and aligning to printed registration marks, ensuring unmatched accuracy and consistency. Whether you're cutting labels, decals, packaging, or any printed media, PS48 VISION intelligently adjusts to artwork placement for perfect cuts every time — even if the material is misaligned. |
 |
- SOFTWARE - RDWORKS/ RDCmarkvision or Lightburn (no fiducial camera under Lightburn)

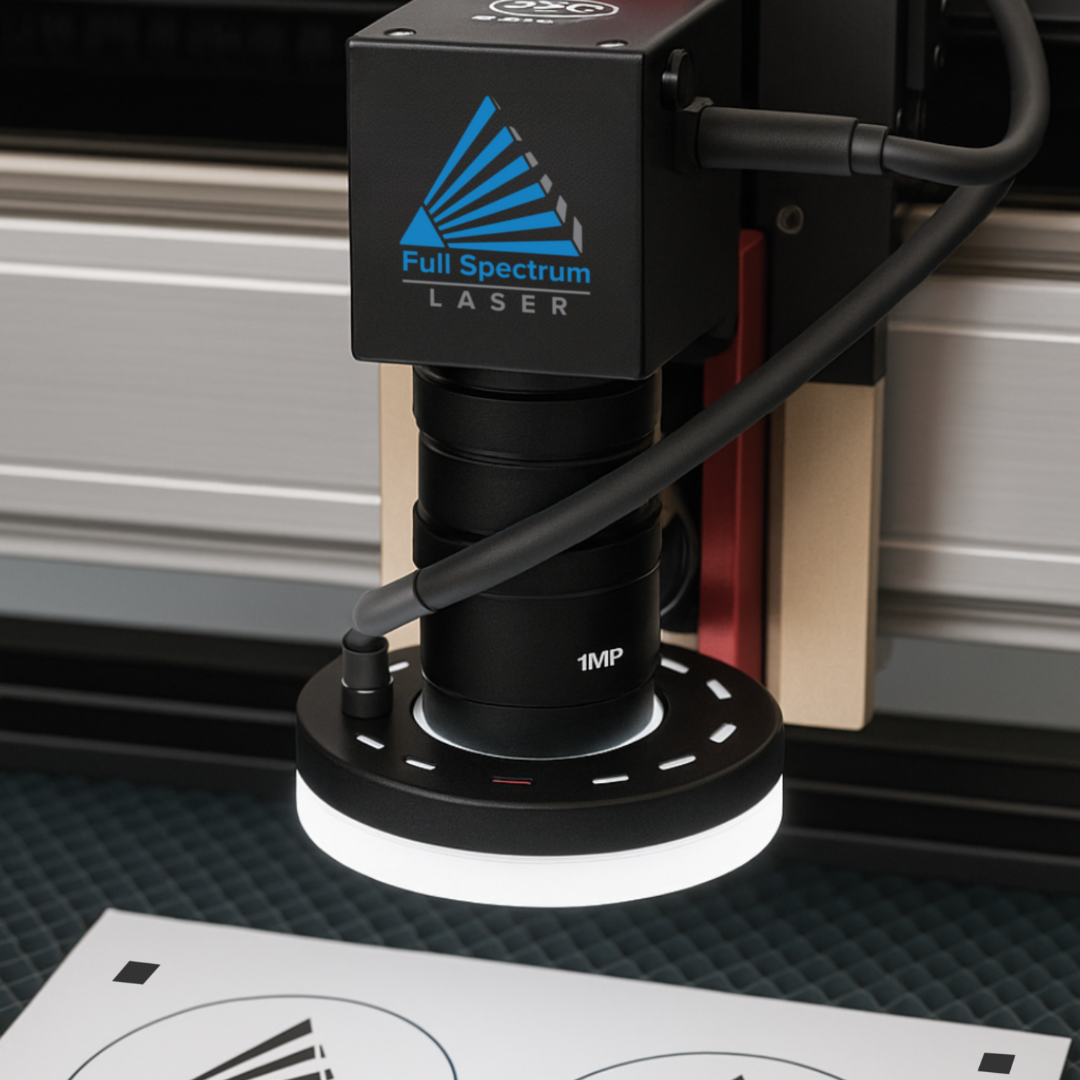

- INDUSTRIAL MONOCHROMATIC GLOBAL SHUTTER CAMERA - automatically finds fiducials for perfect alignment cutting of printed objects
- RF Tube Options - In addition to DC Excited glass tubes, PS48-VISION comes in 30W, 60W and 100W RF Excited Metal tube technology for faster rise times and durability
- ROTARY ATTACHMENT - (optional) allows for cylindrical objects such as cups to be engraved.
- MOTORIZED Z-TABLE - enables users to fit larger objects inside the work area.
- PASS-THROUGH DOORS - large sheets of material are no problem with this feature.
- AUTO FOCUS - makes workflow faster and more precise.
| Weight & Dimensions |
|
|---|---|
| Laser |
|
| Power |
|
| System |
|
| Material | Cuts | Engraves |
|---|---|---|
| Acrylic | ✓ | ✓ |
| Coated Metals | × | ✓ |
| Fabric | ✓ | ✓ |
| Glass | × | ✓ |
| Leather | ✓ | ✓ |
| Paper | ✓ | ✓ |
| Rubber | ✓ | ✓ |
| Stone | × | ✓ |
| Wood | ✓ | ✓ |
| Software |
|
|---|---|
| Compatibility |
|
| Browser Compatibility |
|
| File Import Options |
|
| Minimum Screen Resolution |
|
| Wireless Compatibility |
|
- Exhaust Fan
- Air Compressor
- Radiator Water Chiller
- Honeycomb Table
- Knife Edge Table
- Tool Box
Professional Grade Laser Systems
The next step in precision, power and performance. Designed for industry-scale production and heavy usage output. Now featuring LCD touchscreen controls and the powerful, easy-to-use laser control software.
Newly advanced Professional Grade Laser Systems are now available from Full Spectrum Laser. Exclusive innovations include new, feature-packed LCD touchscreen controls and the powerful, easy-to-use RDWORKS/ RDCmarkvision laser control software. The new era of professional grade laser systems has arrived!
PS48 Vision at a glance
| Standard Laser Tube: | 90W CO2 |
| Laser Tube Upgrades: | 120W, 150W |
| X-Y Working Area: | 48" x 36" |
| Working Z-Height: | 14" |
| Motorized Z-Tables: | Yes |
| Pass-Through Doors: | Yes |
| Power Requirements: | 120V AC |
The Perfect Accessories
Engrave curved objects with a rotary attachment. Work with tumblers, glassware and more.
Upgrade your cooling system for peak performance of the laser.
Increase your laser tube power to accelerate cutting speed and marking ability.
...plus fume extractors, specialty focus lenses and more!
