Product Overview

4x2 Flatbed + Tube Cutting Fiber Laser System

Easy to use

Laser Source: Solid State 1064nm Fiber Laser offer in CW and QCW options
Laser Power: 1.5kw - 6kw options available
Base Model cw 120V up to 220V single phase, no three phase power needed
Fully Enclosed for Safety
Cut pipe & square tubing with tube chuck up to 3"
Cutting metals produces very little smell, much less than cutting plastics or wood

Compact. Powerful. Profitable.

Looking for a cost-effective, compact fiber laser cutter that delivers industrial-grade performance? The 4x2 + Tube Fiber Laser Metal Cutting System is the ultimate in-house solution for precision cutting of sheet metal and tubing — all without the need for three-phase power.

This fully enclosed, low-maintenance system offers unmatched versatility, safety, and ROI, making it the ideal laser cutter for small shops, manufacturers, and fabrication businesses.

Sheet Metal Fabrication
Automotive Industry
Aerospace Industry
Architectural and Interior Decoration
Electrical and Power Equipment Manufacturing
Commercial Kitchen Equipment
Agricultural Machinery
Advertising and Signage
Medical Device Manufacturing

Key Features

Dual Cutting Capability

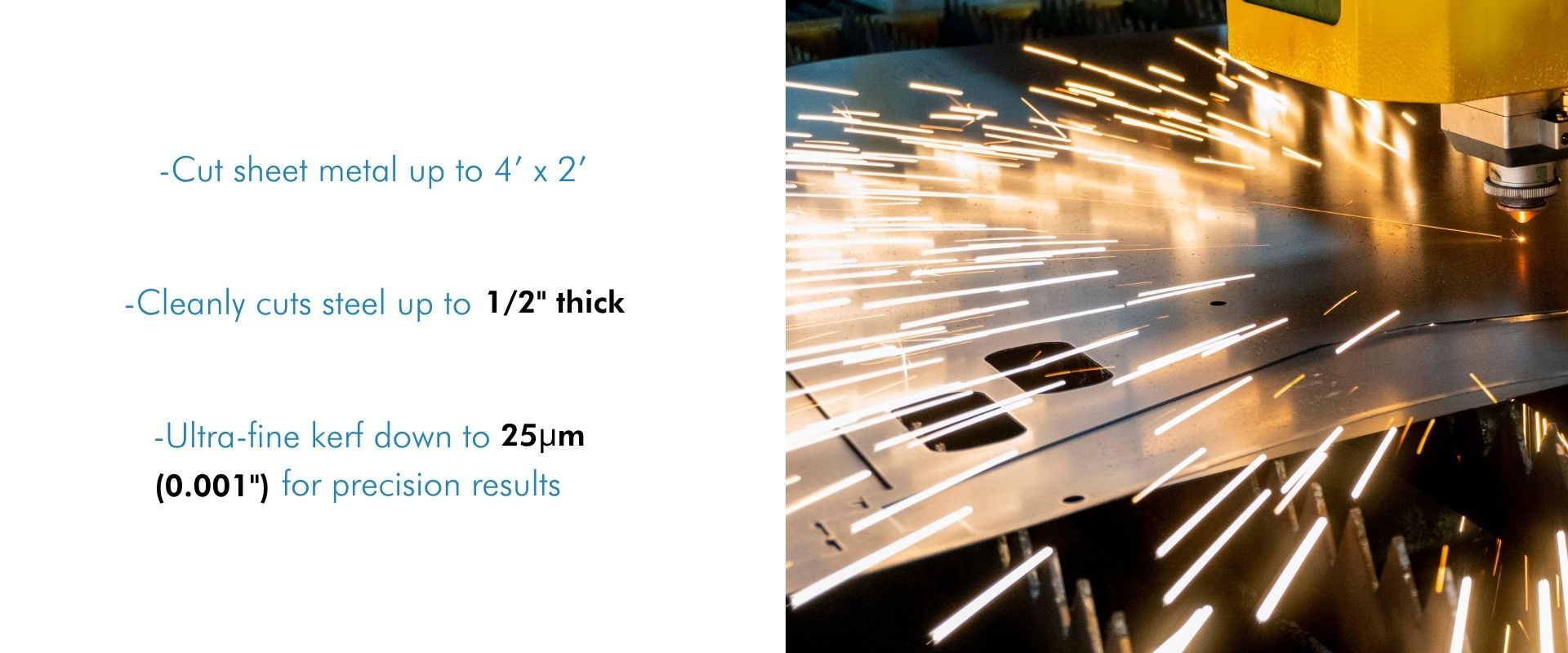

- Cut sheet metal up to 4’ x 2’, with pull out cutting table.

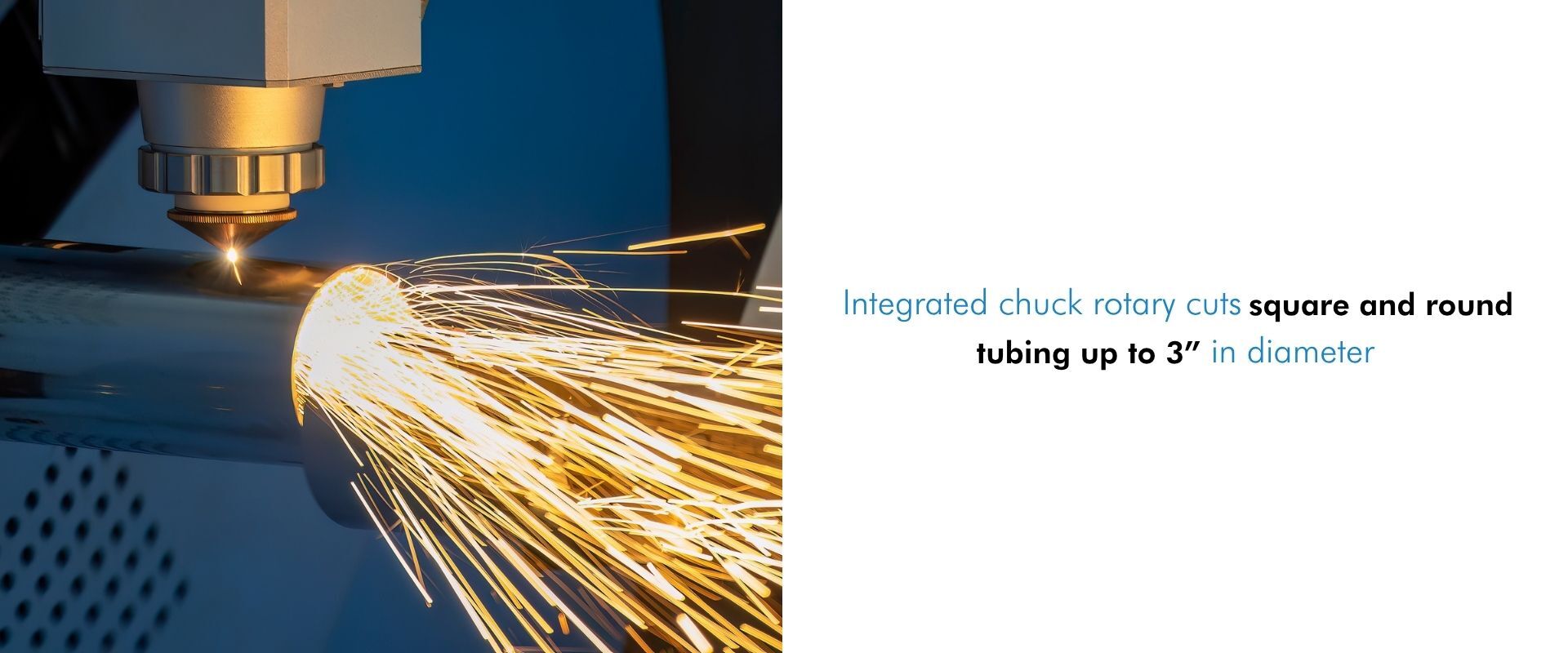

- Integrated rotary chuck cuts round and square tubing up to 3” in diameter
⚡ High-Performance Cutting
- Cleanly cuts steel up to 1/2" thick
- Ultra-fine kerf down to 25μm (0.001") for precision results
- Power options from 1.5kw to 6kw QCW
Multi-Material Compatibility
- Cuts carbon steel, stainless steel, aluminum, copper, titanium, gold, silver, and more
- Ideal for metals commonly used in aerospace, automotive, and architecture, Jewelry
Plug & Play Power
- Operates on standard 120V–220V single-phase power
- No three-phase installation or electrical upgrades required
Efficient and Safe Operation
- Small footprint can be accommodate in even the smallest of shops
- Fully enclosed cutting area ensures operator safety
Produces minimal odor and fumes—cleaner than wood or plastic laser cutting

Ideal For:

Custom fabrication shops
Small-to-medium manufacturing operations
Prototyping and product development
Architectural and decorative metalwork
Automotive and aerospace component fabrication
Schools and makerspaces

Multi-Material Compatibility

❓ Frequently Asked Questions (FAQ)

Q: Can this laser cutter handle both flat sheets as well as round and square tubing?
A: Yes! It features a 4’ x 2’ cutting bed as well as an integrated rotary tube chuck that accommodates round and square pipes up to 3” in diameter.

Q: What kind of power does it require?
A: It runs on standard 120V–220V single-phase power, making it perfect for shops without three-phase service.

Q: What materials can it cut?
A: This fiber laser is compatible with steel, stainless, aluminum, copper, brass, titanium, silver, gold, and other conductive metals.

Q: Is this a good solution for small fabrication shops?
A: Absolutely. It's a compact, affordable, and low-maintenance system perfect for small to mid-size businesses looking to bring metal cutting in-house.

? Take Control of Your Metal Cutting

The 4x2 + Tube Fiber Laser Cutter combines industrial precision with shop-friendly power and price. Whether you're cutting sheet metal, square tubing, or round pipe, this system helps you scale your business, reduce costs, and increase control over your production pipeline.

Contact us today to request a quote, get a demo, or learn more about how our fiber lasers can help grow your business.
